The portable hydraulic briquette machine which has light weight,small capacity can be deployed beside the metal processing machines to make metal briquette, clean the working place, save waste metal powder transortation cost,etc.
Contact information:
Email:curbing888@hotmail.com ; wechat: curbing1970;
Whatsapp:: +86 139 2377 4083
Portable briquetting machine is a compact machine for metal scrap that forms briquettes and squeezes out oil in one step.
1. Why use Portable briquetting machine ?
Answer :
1) The compressed briquettes made by portable briquetting machine are high density cylindrical ones. They are uniform in size and easy to stack and store.
2) There is no waste liquid dripping from the briquettes, so the environment of the metal processingplant can be kept clean enough to satisfy environmental audits.
3) The utilization rate of the waste scraps back to the furnace after compression has been greatly increased, and the selling price of recycled metal chip has increased by 30%.
4) Mobile portable briquetter machine can be moved easiely at the workshop.
.
2. Datasheet of Portable Hydraulic briquette machine l Metal Cutting powder compressor

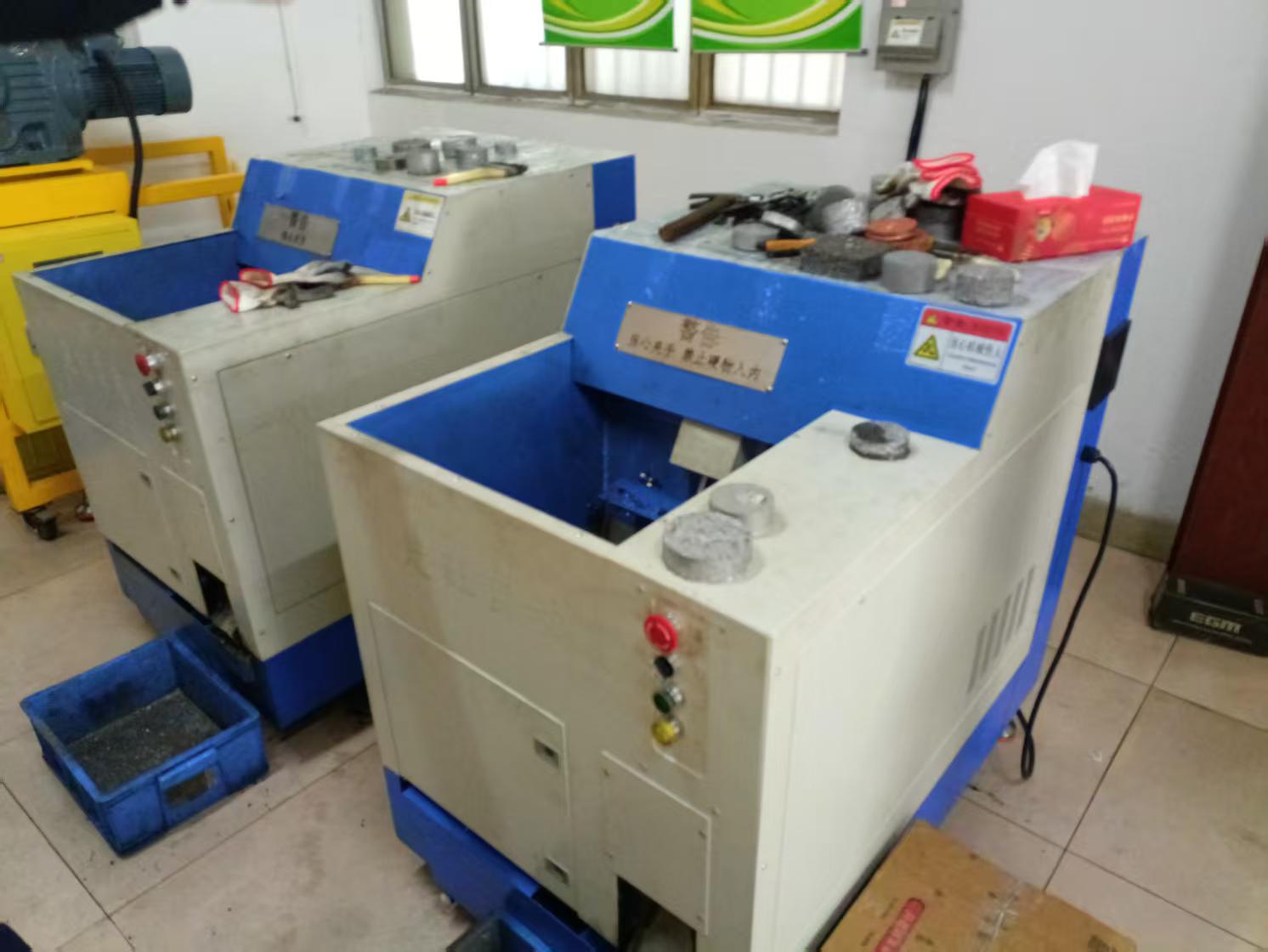

Portable Hydraulic briquette machine l Metal cutting powder compressor- PHBM-004

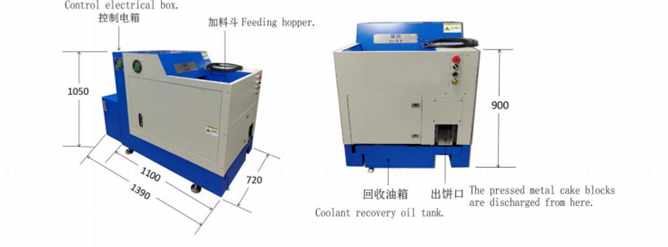

1. External dimensions: 720x1390x1050 （W*L*H）mm.
2. Feeding hopper addition size:520×450mm.
3. Feeding hopper inlet height:900mm.
4. Feeding hopper capacity:50L.
5. Oil receiver capacity:18L.
6. Cutting powder pressing method:screw.
7. Cutting powder compression method: oil cylinder.

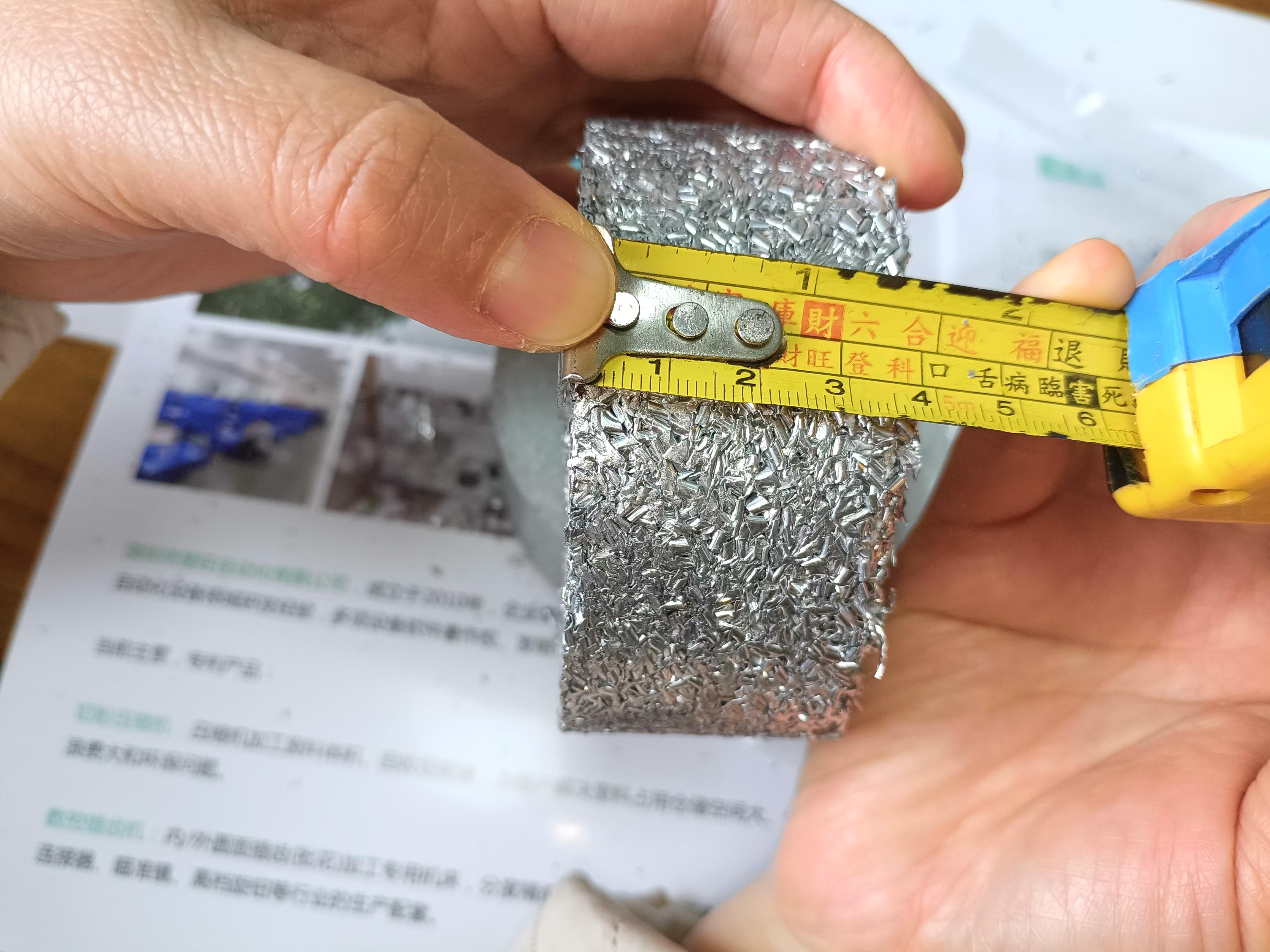

8. Compressed size: φ70×10°50mm.
9. Compression surface pressure:1080kgf/cm².
10. Maximum applied pressure:42 tons.
11. Applicable materials: aluminum/stainless steel/iron/copper/magnesium alloy/etc.
12. Applicable cutting powder types: lathe/CNC/sawing machine.
13. Cutting powder compression volume ratio: lathe long coiled material 30:1
14. Cutting powder compression volume ratio: CNC/sawing machine cutting powder 8:1 .
15. Cycle time: Approximately 15 seconds (excluding the time for putting into the compression part).
16. Weight:650kg.
17. Power supply: 3-phase 380-415V. Can be customized for different countries
18. Power:4KVA.
