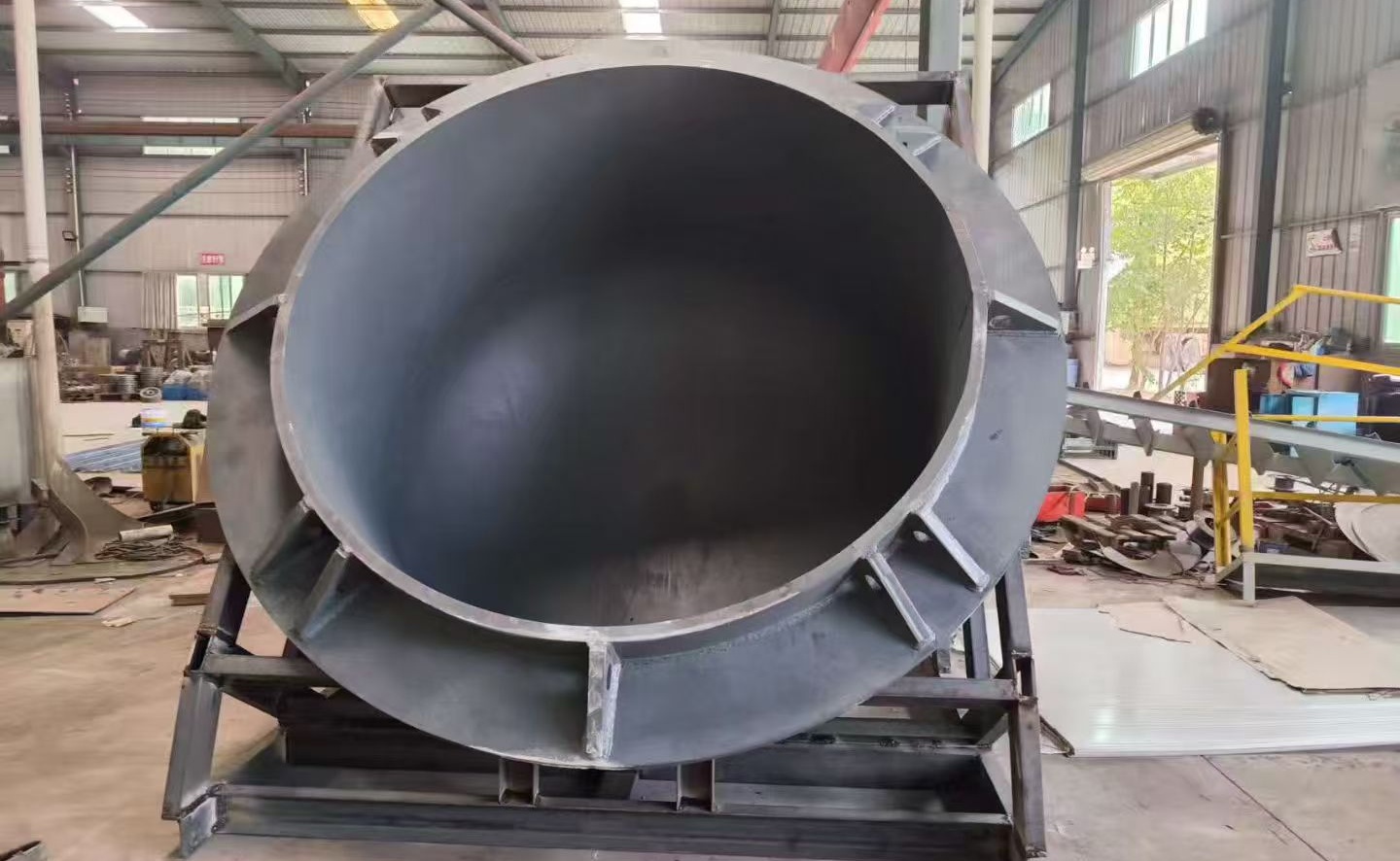

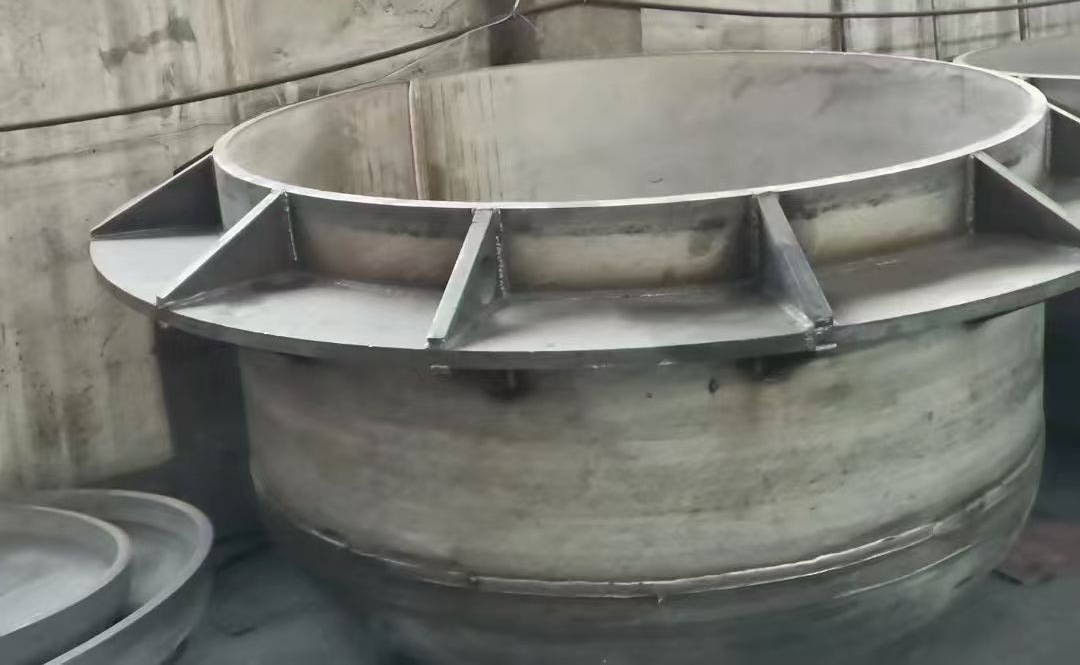

Lead refinery kettle of lead acid battery recycling plant can make refined lead ingot with 99.9% purity.
Contact information:
curbing888@hotmail.com ; wechat: curbing1970; Whatsapp:: https://wa.me/8613923774083.
You can buy whole set of lead refinery kettle furnace with kettle, furance, lead ingot casting machine, lead ingot mold.
Also you can buy just lead refinery kettle, lead ingot molds, spare parts of lead ingot casting machine,etc.
There are many ways to make refinery furnace:
Type 1: lead refinery furnace burnt by nature gas or diesel oil
Type 2: Eletricity furnace
Electrical Refinery furnace/ Refinery kettle:
The lead refinery melting furnace is mainly composed of furnace body (steel structure, shell), slag motor, near-infrared heating system, insulation structure, etc.
Near-infrared heating system, fast heat conduction, reasonable and perfect insulation structure, maximum reduction of heat loss. It only takes about 150-250 minutes for 5000kg lead ingot to turn on to 320C, breaking the traditional heating method and truly achieving energy saving and environmental protection.
Omron PID intelligent control, automatic constant temperature, stable temperature difference, automatic control fast shutdown, 1 day can be divided into eight periods of timing to turn on and off, saving time and convenience.
Operating time for each batch is 5 hours for first batch, for second batch the operating time is 3-4 hours.
Technical details of electrical refinery furnace
1) Product model: 5-100MT lead melting furnace
2) Dimensions: Φ1620X1100 mm
3) Rated temperature: 600 degrees
4) Rated voltage: 380-415V
5) Rated power of heating: 90KW
6) Baking time: about 5 hours for the first furnace and 3-4 hours for the second furnace
7) Energy consumption: Compared with traditional electric furnaces, the electric furnace (infrared) saves 30-50% more electricity, reducing costs and pollution-free
8) Agitator Motor power: 3.7KW
9) Lead pot size: Φ1300X500mm
10) Lead pot material: 16mm 316 Stainless steel
