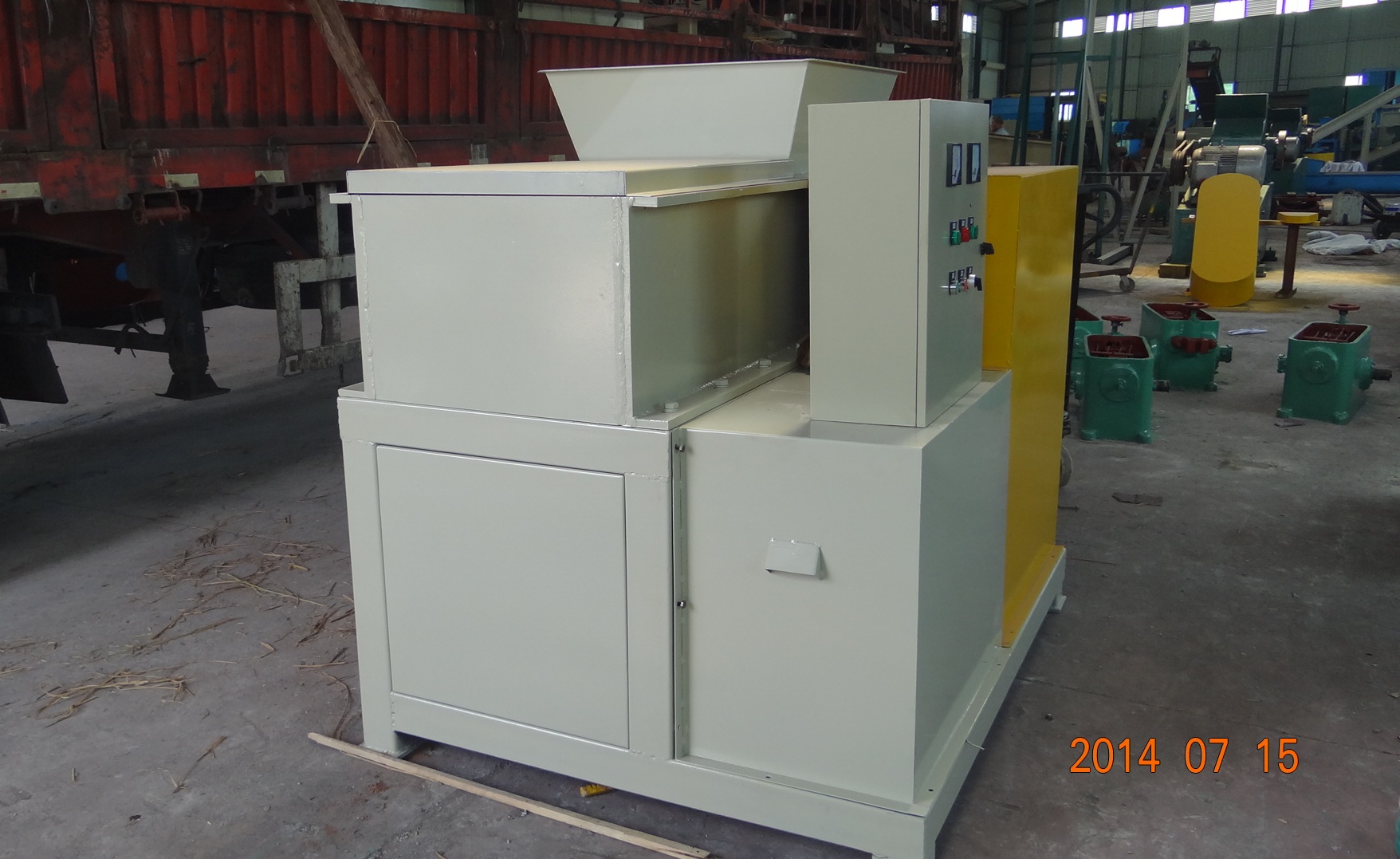

The Single-Shaft-Shredder SS-600 can be used at cable recycling plant, circuit board recycling plant, plastic recycling plant, etc.
Specially for cable recycling as pre-chopper.
Equipment Specifications
• Dimensions (L×W×H): 1900 × 1380 × 1620 mm
• Weight: 1700 kg
• Throughput Capacity: 300–500 kg/h
• Cylinder Stroke: 450 mm
• Rotor Diameter: Φ245 mm
• Main Shaft Speed: 65 r/min
• Screen Mesh Aperture: Φ30 mm
• Number of Moving Blades: 36
• Number of Fixed Blades: 2
• Main Motor Power: 22 kW
• Hydraulic Power: 1.5 kW
